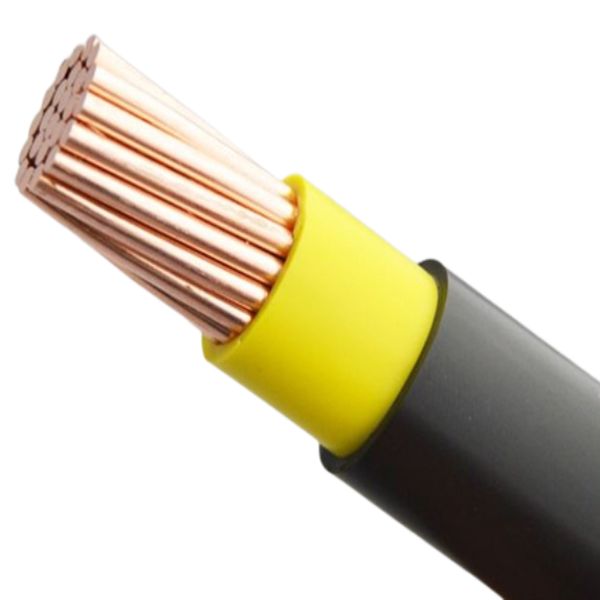

6381Y (BS 6004/6346) PVC insulated and sheathed copper core industrial cable

This cable is used for DC supply of telecommunication equipment and power applications requiring flexible installation.

- Bare copper conductor

- BS6360 Cl-5/IEC60228 Cl-5 compliant.

- PVC insulation TI1, to BS7655.

- PVC sheath TM1 to BS7655

Oxygen index > 30%.

Meets flammability test requirements as per BT M231.

Core colors

Blue, gray, yellow-green, brown, other colors available.

- Operating voltage: 1.0mm² to 35mm² - 450/750V (BS 6004)

50mm² and above - 600/1000V (BS 6346)

- Minimum bending radius: up to 50 mm²: 3x OD, 70 mm² and above: 3x OD, 2x OD, 3x OD

70mm² and above: 4x OD

- Operating temperature: -15º C to +70º C

- Insulation resistance: 10 MΩxkm

- Flame retardant: IEC 60332.1, BS4066 Part 1
