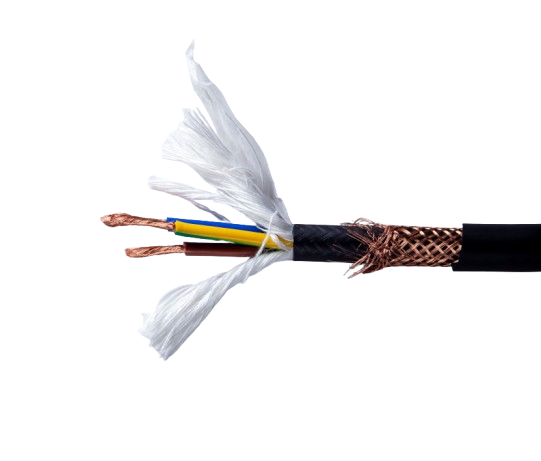

6591TQ (BS 6883) Industrial Cable

This cable is designed for use in offshore applications where mechanical protection is not required. Examples of applications include fixed cabling on ships and offshore rigs and oil platforms.

- Multiple strands of flexible bare copper conductors

- Multiple strands following BS 6360 Cl-2/IEC 60228 Cl-2

- EPR (Ethylene Propylene Rubber) insulation to BS 6899, white color

- TPBWB (tinned bronze wire braid), non-magnetic armor

- LSOH (Low Smoke and Halogen Free), SW4 to BS 6899

- Operating voltage: 600/1000 V

- Test voltage: 2000 V

- Minimum bending radius: up to 10mm² - 3x OD

10mm²-25mm² - 4x outer diameter

Above 25mm² - 6x OD

- Operating temperature range: -25º C to +85º C

- Oxygen index 32%, HCL 5%

- Flame retardant: IEC 60332.1

- Insulation resistance: 20 MΩxkm
