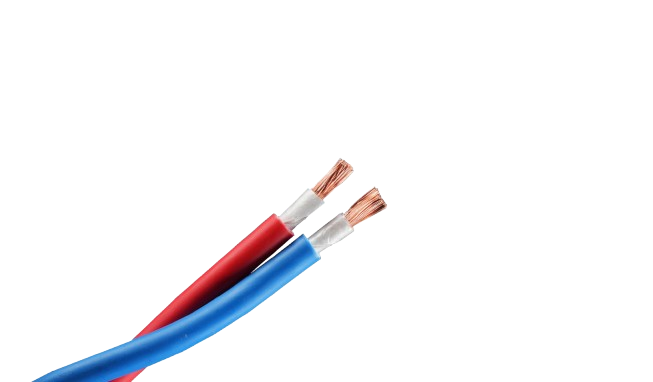

(BS 6360 Cl-1/IEC 60228 Cl-1) 6491B (BS 7211) Copper Core Industrial Cable

This cable is mainly used for internal wiring in distribution boards and switchboards, generally installed in ducts for internal wiring of equipment with an operating temperature of 90°C. It is suitable for use in public places (e.g. government buildings, etc.) where fumes and poisonous gases may cause life-threatening injuries and damage to equipment. This cable does not produce corrosive gases when burned, which is especially important for electrical equipment. 6491B is equivalent to the EC standard H05Z-U/H07Z-U/H07Z-R.

- Solid or multi-stranded copper wire

- Solid to BS 6360 Cl-1/IEC 60228 Cl-1 (H05Z-U/H07Z-U)

- Multi-stranded in accordance with BS 6360 Cl-2/IEC 60228 Cl-2 (H07Z-R)

- LSOH Cross-linked polyolefin EI5 insulation

Core color

Black, blue, yellow-green, red, yellow, white, violet, brown, gray, orange, pink

Technical Characteristics

- Operating voltage: 300/500 V (H05Z-R), 450/750 V (H07Z-U/H07Z-R)

- Test voltage: 2000 V (H05Z-R), 2500 V (H07Z-U/H07Z-R)

- Minimum bending radius: up to 10 mm² - 3x OD, above 25 mm² - 6x OD.

From 25 mm² - 6x O.D.

- Operating temperature: +0º C to +90º C

- Temperature reached in case of short circuit: +250º C

- Insulation resistance: 10 MΩxkm

- Halogen free according to EN 50267-2-1 / IEC 60754-1

- Smoke density according to EN 50268-2 / IEC 61034-2

- Toxic gas test according to EN 50267-2-2, IEC 60754-2

- Flame retardancy according to EN 50265-2-1, IEC 60332-1
