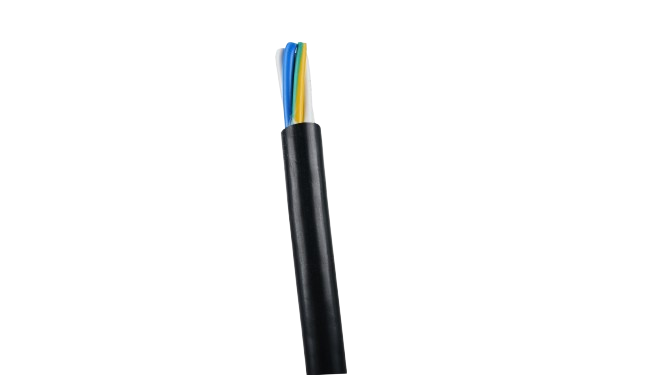

(IEC 60228 Cl-2) 6181B (BS 7889) XLPE insulated copper core industrial cable

This cable is primarily used for fixed wiring in domestic and industrial power/lighting applications and can be laid in raceways or conduits or surface mounted when used for earthing purposes. Ideal for use in public areas where smoke and toxic fumes may cause

Life-threatening fumes and toxic fumes can cause damage to equipment in public places (e.g. public government buildings, etc.) When mechanically protected, it can be embedded in concrete.

- Multi-stranded copper wire

- Compliant with IEC 60228 Cl-2

- XLPE insulation

- LSOH sheath

Core color

Black, Blue, Brown

Technical characteristics

- Operating voltage: 600/1000 V

- Minimum bending radius: up to 25 mm² - 4x OD, above 25 mm² - 6x OD.

               Above 25 mm² - 6x O.D.

- Operating temperature: -15º C to +90º C

- Insulation resistance: 10 MΩxkm

- Halogen free according to EN 50267-2-1 / IEC 60754-1

- Smoke density according to EN 50268-2 / IEC 61034-2

- Toxic gas test according to EN 50267-2-2, IEC 60754-2

- Flame retardancy according to EN 50265-2-1, IEC 60332-1
