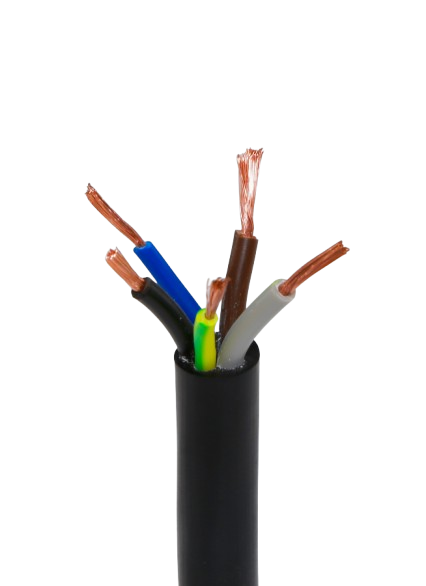

（UL & RoHS & CSA ）ULSJO American Standard Rubber Cables

UL & CUL recognized designed for industrial equipment, heavy duty tools, motors and welding leads, power extensions, portable machinery, audio equipment, portable stage lighting, marine marina power and mining applications. Suitable for indoor/outdoor use.

-Excellent resistance to oil, acids, chemicals, water, ozone, temperature extremes, cuts, tears and abrasion.

S=Service line (600 volts)

J=Primary service line (300 volts)

O=Oil-resistant outer jacket

OO=Oil-resistant inner insulation and outer jacket

W=CSA designated weather/water resistant

UL62

 CSA C22.2-49

-RoHS

-Customized products are available for special configurations, other sizes, core and jacket colors.

Conductor material: Stranded copper wire

Conductor class: DIN VDE 0295 Class 5, cf. IEC 60228 Class 5

Core insulation: EP

Core identification: preferred colors: black, white, red, yellow-green (green), orange, from 6 black RAL 9005 wires with white numbers, with or without yellow/green

Stranding: Core stranded with filler

Sheath: CPE

Sheath color: black RAL9005 (optional)

Rated Voltage:300V

Test Voltage: 18AWG-11AWG 2000V; 10AWG 3000V

Minimum bending radius fixed laying value: 7.5xd

Minimum Bend Radius Mobile laying value: 10xd

Operating Temperature Fixed Min/Max value: -40°C/+105°C -40°C/+90°C -40°C/+75°C -40°C/+60C

Temperature Rating Moving Minor/Major: -40°C/+105°C -40°C/+90'C -40°C/+75°C -40°C/+60°C

Positive Flame Rating:Self-extinguishing and flame retardant Conforms to IEC 60332-1-2 FT1 VW-1

Oil Resistance:Conforms to EN 60811-2-1

Approvals: CE: HO7RN-F, HO7BN4-F, HO7RN8-F. If CE approval is required, please specify separately.
