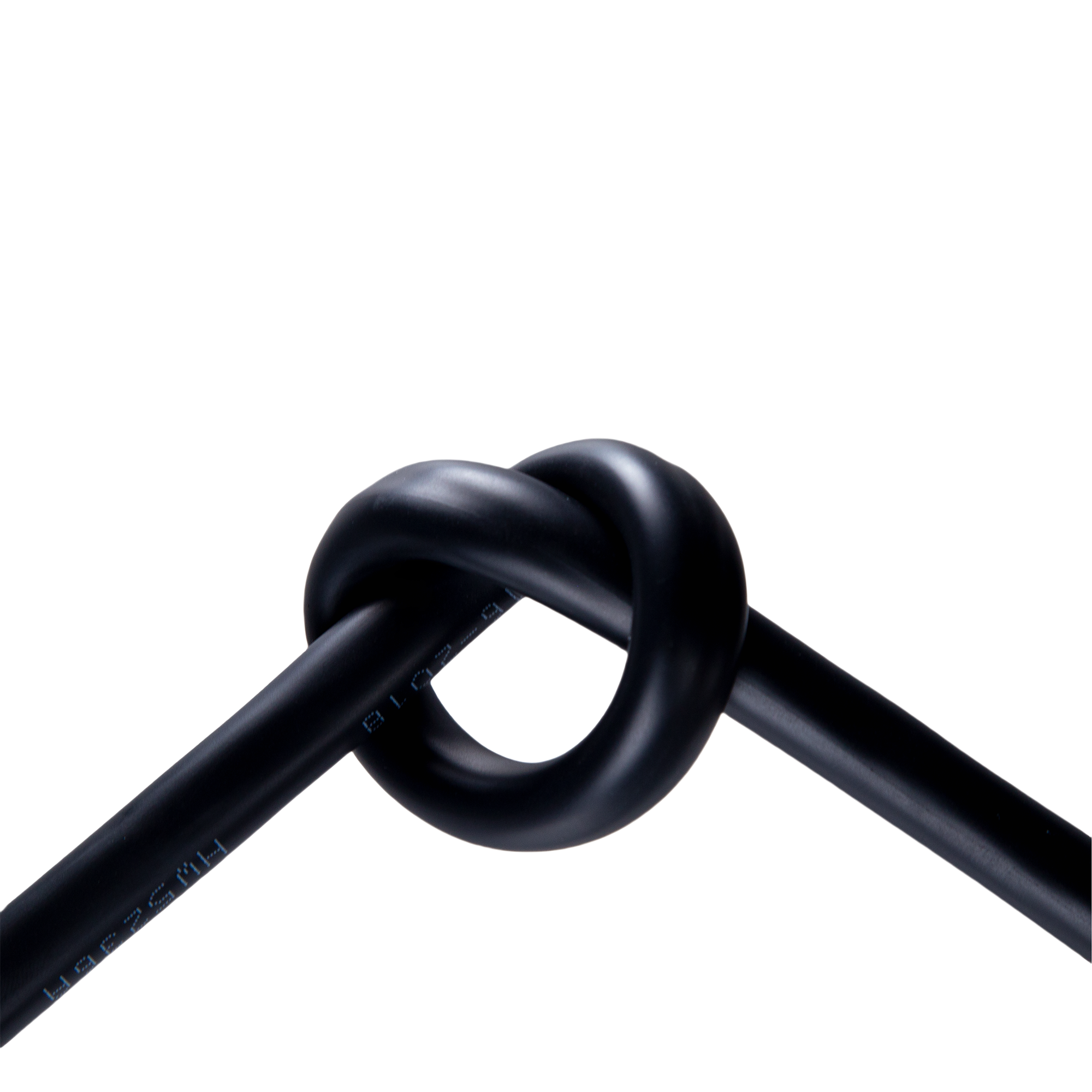

(CE & RoHS) ANT1001 AC-FLEX801 AC-FLEX901 Unshielded Drag Chain Cable Bend Resistant 15 Million Times Special Cables

The cable is widely used in automated CNC processing, servo system, drag chain system signal and control use. It can also be used in dry and humid rate inside and outside environments as well as crane domain. It is also suitable for data transmission, measurement, feedback, encoder, resolver, tachometer, signaling and system applications in automated production processes

UV, oxygen and weather resistant according to EN 50396 and HD 605 S2

Resistant to coolants, microorganisms, weak acids and alkalis

ROHS

2014/35/EU-Guideline ("Low Voltage Directive"). CE

Conductor material: Bare copper

Conductor class: DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor.

Core insulation: PVC-J-70-001(7088B)

Core marking.

Control and signal cables: <0,5 mm²: 5 cores and below with color separation, in accordance with n.DIN 47100, more than 5 cores of multi-core cables with color separation of core wires and white ink marking; ≥0.5 mm2: 5 cores and below with color separation, including yellow/green ground wire, in accordance with n.DIN 47100, more than 5 cores of multi-core cables with black core wires and white ink numbering (if there are special requirements on demand)

Power cable: black jacket with white printing U/L1; V/L2; W/L3; GN/PE

Cable: core <10: core to short pitch layered stranding; core ≥ 11: core using two times twisted

Sheath: DQPVC-H-70-002(B-70A)

Sheath color: black (RAL9005), gray (RAL7001), orange (RAL2004), green (RAL 6018)

Rated voltage: ≥25: 0.6/1KV, 0.75--16: 300/500V; ≤0.5: 300/300V

Test Voltage: 3500V, 2000V, 1500V

Conductor resistance: +20°C Conforms to DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors

Minimum bending radius Fixed: 4x d

Minimum bending radius Traveling: 7.5 x d

Travel speed: self-supporting: max. 1.5 m/s, gliding: max. 1 m/s

Cable length: self-supported/glide max.400 m

Acceleration: max. 100 m/s²

Bending cycle: <20 times / Min. life >5 million times

Operating temperature Fixed min/max:-30°C/+70°C

Operating Temperature Mobile Minor/Major:-15°C/+70°C

Flame Retardant Grade:IEC 60332-1-2
