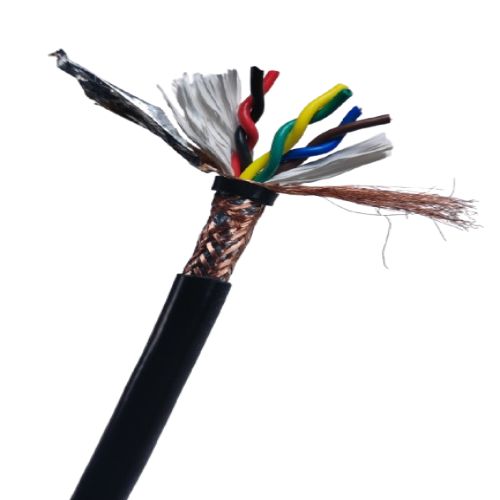

(UL & CE) UL2517(SP) 105°C 300V Copper core PVC sheathed and insulated signal cable

UL & CUL certified data transmission cables, control and connection cables, mainly for the transmission of analogue and digital signals in process control facilities in measurement and control technology for lossless data signal transmission. Suitable for fixed lay and mobile applications without defined paths and without tensile stress. Suitable for use in dry and humid rooms.

RoHS compliant; cold resistant; flexible

Complies with UL & CUL standards, UL758, CSA C22.2 No.210

2014/35/EU-Guidelines (Low Voltage Directive) CE

Special structures, other sizes, colours of core wires and sheaths products can be accepted for customization.

Conductor material: bare or tinned copper

Conductor type: UL758, ASTM B3 or ASTM B33

DIN VDE 0295 Class 5 conductor or IEC 60228 Class 5 conductor.

Core wire insulation: PVC (automotive material)

Core identification: <20AWG: 5 cores and below with colour separation, in accordance with n.DIN 47100, more than 5 cores of multi-core cables with core colour separation, white ink marking distinction; ≥20AWG: 5 cores and below with colour separation, with yellow/green ground, in accordance with n.DIN 47100, more than 5 cores of multi-core cables with black core, white ink numbering distinction (if there are special requirements on request)

Stranding: layered stranding, parallel construction

Shielding: tinned copper braid; coverage approx. 70%

Sheath: PVC

Sheath colour: grey RAL7001 or black RAL9005

Rated voltage: 300 V

Test voltage: core/core: 2.0kV

Conductor resistance: UL1581 ASTM Class C

Insulation resistance: +20℃≥20MΩ x km

Minimum bending radius fixed laying value: 7.5x d

Minimum bending radius moving laying value: 15x d

Temperature rating fixed value: -40°C/+105°C

Temperature class moving value: -30°C/+105°C

Flame retardant rating: self-extinguishing and flame retardant in accordance with UL1581VW-1; CSA C22.2 No.2556-15 FT1, FT2; IEC 60332-1-2 standards.

Certification: UL & CUL: UL1569, UL2517

             CE: LiYCY-TP   (If you need CE certification requirements need to be indicated separately)
