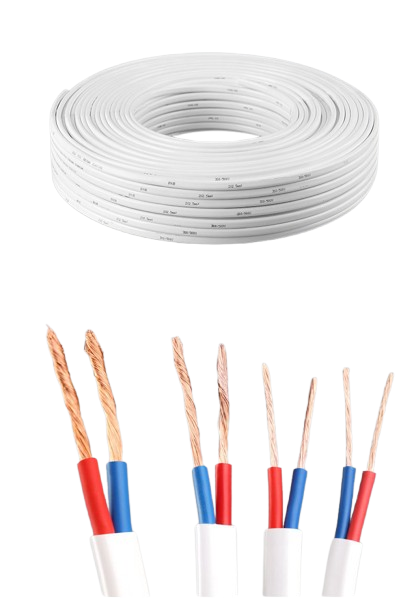

0.6/1KV PVC insulated and sheathed copper core flexible cable
0.6/1KV PVC insulated and sheathed copper core flexible cable
Mainly used for transmitting 50Hz industrial frequency power. It is suitable for all kinds of power systems such as urban power grid, industrial power grid, railroad power grid and so on.
Power Distribution System: It can be used in power distribution system, such as substation, distribution station, factory power distribution and other places.
CE/RoHS
Conductor Material: copper
Insulation material: PVC/XLPE
Sheath material: PVC
Rated voltage Uo/U: 0.6/1kV
Maximum temperature of the cable conductor: 70℃&90℃.
Maximum temperature of cable conductor during short circuit (maximum duration not more than 5S) not more than 250℃.
The ambient temperature of the cable during laying shall not be less than 0℃
its minimum bending radius is as follows：
Single-core cable-unarmored 20D, armored 15D
Multi-core cable-unarmored 15D, armored 12D
(D, for the cable outer diameter mm)
