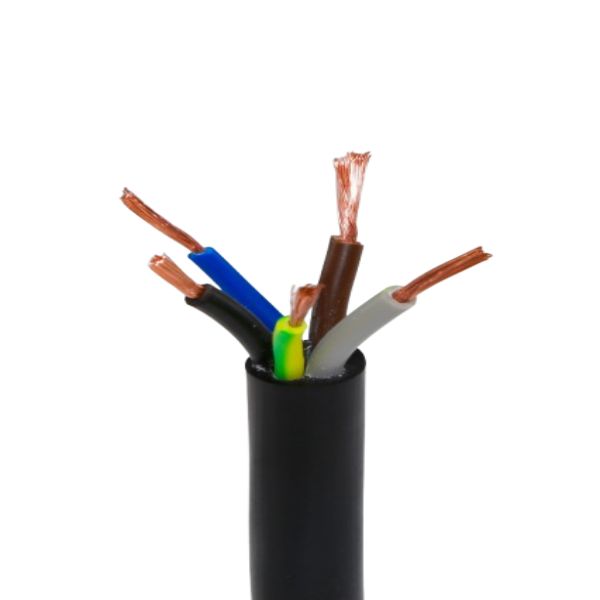

(CE&UL&RoHS&CSA) ULSOW/H07RN-F American Standard UL Listed Rubber Cable

SOW is designed for industrial equipment, heavy duty tools, motor and welding leads, power extensions, portable machinery, audio equipment, portable stage lighting, marine marina power and mining applications. Suitable for indoor/outdoor use. Portable tools, equipment, small motors and related machinery, appliances, and equipment exposed to oils, solvents, flames, moisture and other electrical equipment requiring flexibility and durability. Suitable for applications up to 600 V and temperatures from -40°C to +105°C.

-Excellent resistance to oil, acids, chemicals, water, ozone, temperature extremes, cuts, tears and abrasion.

S=Service wire (600 volts)

O=Oil-resistant outer jacket

W=CSA designated weather/water resistant

UL62

CSA C22.2-49

-RoHS

-Customized products are available for special configurations, other sizes, core and jacket colors.

Conductor material: Stranded copper wire

Conductor class: DIN VDE 0295 Class 5, cf. IEC 60228 Class 5

Core insulation: EP

Core identification: preferred colors: black, white, red, yellow-green (green), orange, from 6 black RAL 9005 wires with white numbers, with or without yellow/green

Shielding density: ≥85%

Sheath: CPE

Sheath color: black RAL9005(optional)

Rated voltage: 600V

Test voltage: ≤13AWG 2000V;   12AWG-9AWG 3000V;   8AWG-2AWG 4000V

Minimum bending radius fixed laying value:7.5xd

Minimum bending radius moving laying value:10xd

Operating Temperature Fixed Min/Max: -40°C/+105°C -40°C/+90°C -40°C/+75°C -40°C/+60°C

Temperature Rating Moving Minor/Major: -40°C/+105°C -40°C/+90°C -40°C/+75°C -40°C/+60°C

Flame retardant rating: self-extinguishing and flame retardant in accordance with IEC 60332-1-2 FT1 VW-1.

Oil Resistance: Complies with EN 60811-2-1.

Approvals: UL/CE
