PRODUCT NAME

for internal wiring of control cabinets, medical technology equipment, electronic components and control devices, installation in protective hoses and pipes in mechanical engineering, as connection cables for transformers and motors

self-extinguishing and flame-retardant

not to be used for laying directly on platforms, walkways (except for equipotential connections)

available in all common standard colours.

RoHS、CE

2014/35/EU (Low Voltage Directive) CE

Special constructions, other sizes, colours of core wire products can be customised.

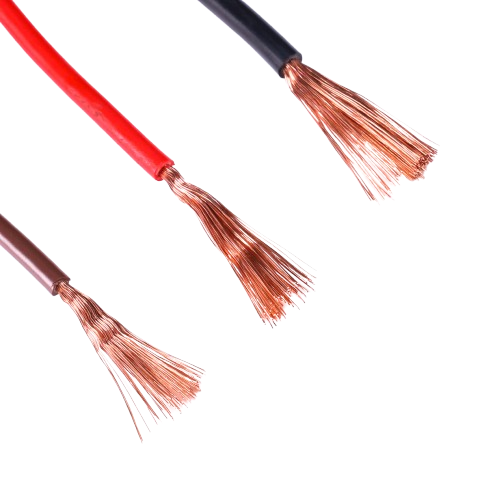

Conductor material: copper stranded wire

Conductor type: IEC 60228 Class 5 conductor

Core insulation: PVC

Core wire identification: different colours

Rated voltage: H05V-K: 300/500V;     H07V-K: 450/750V  （peak operation）

Test voltage: H05V-K: 2kV;    H07V-K: 2.5kV

Conductor resistance: +20℃ Conforms to IEC 60228

Minimum bending radius fixed laying value: 10x d

Minimum bending radius moving laying value: 15x d

Operating temperature Fixed small/large value: -15°C/+90°C

Flame retardant rating: self-extinguishing and flame retardant according to IEC 60332-1-2

Standard: EN 50525-2-31 (IEC 60227-3)
