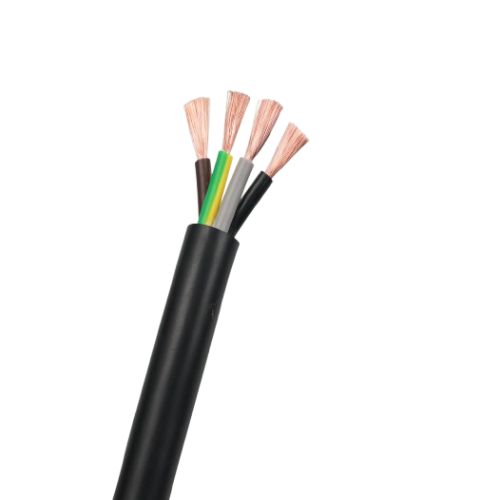

YSLY（CE）copper core PVC sheathed and insulated flexible oil resistant wire

Suitable for occasional bending in free, non-continuous reciprocating movements during fixed installations without tensile loads, as well as in dry or damp spaces subject to moderate mechanical loads, suitable for torsion applications. Typical applications are cross-border areas in wind turbine generators (WTG).

acid and alkali resistance, oil resistance

RoHS；     2014/35/EU (Low Voltage Directive)CE

Customised products are accepted for special constructions, other sizes, colours of cores and jackets.

Conductor material: bare copper wire

Conductor type: IEC60228 cl.5

Core insulation: PVC-J-80-005

Core identification: <0.5mm²: 5 cores and below with colour separation, in accordance with n.DIN 47100, above 5 cores multi-core cables with colour separation of core wires, differentiated by white ink dots; ≥0.5mm²: 5 cores and below with colour separation, with yellow/green ground, in accordance with n.DIN 47100, above 5 cores multi-core cables with black core wires, differentiated by white ink numbering (if any special requirements on request)

Stranding: Stranded in layers

Sheath material: DQPVC-H-80-005

Sheath colour: grey RAL 7001

Rated voltage: 300/500V

Test voltage: 2kV

Minimum bending radius fixed laying value: 4x d

Min. bending radius moving laying value: 15x d

Temperature rating fixed value: -40°C/+80°C

Temperature class moving value: -5°C/+80°C

Temperature: +80°C operating temperature; +150°C short-circuit temperature

Standard: EN 50525-2-51
