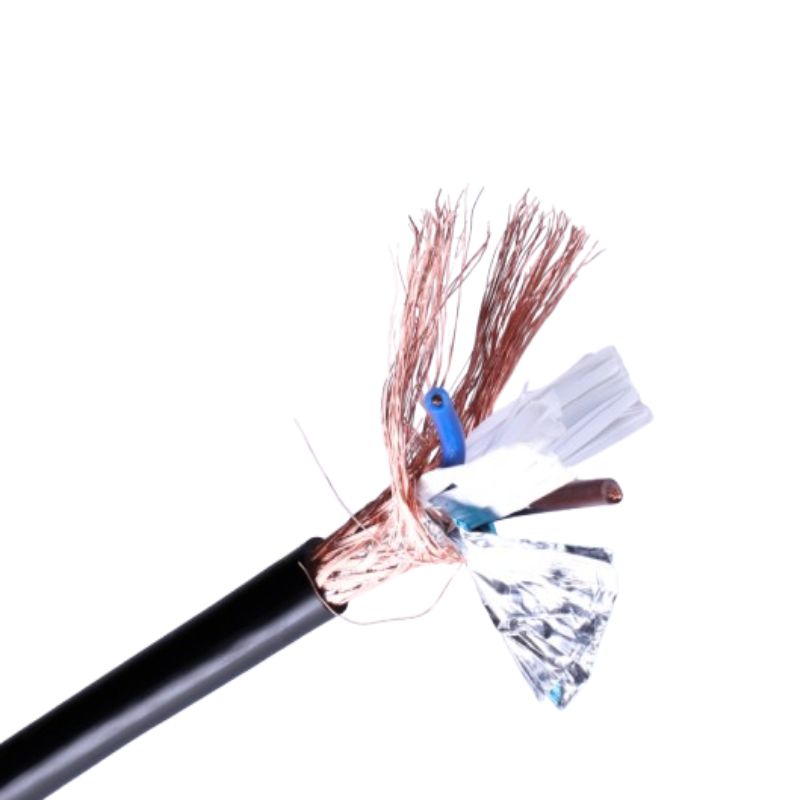

(UL & CUL & CE) UL2464（P） 80°C 300V copper core PVC sheathed and insulated signal cable (shielded)

UL & CUL certified data transmission cables, control and connection cables, mainly for the transmission of analogue and digital signals in process control facilities in measurement and control technology for lossless data and signal transmission. Suitable for fixed laying and low-speed movement applications without defined cable paths and without tensile stress. Internal wiring or external interconnection of electronic equipment in circuits.

RoHS compliant

UL & CUL

UL758, CSA C22.2 NO.210

2014/35/EU-Guidelines (Low Voltage Directive)CE

 Customized products are accepted for special structures, other sizes, colours of cores and jackets.

Conductor material: bare or tinned copper

Conductor class: UL758, ASTM B3 or ASTM B33, DIN VDE 0295 Class 5 conductor or IEC 60228 Class 5 conductor.

Core insulation: PVC, HDPE （optional）

Core identification: <20AWG: 5 cores and below with colour separation, in accordance with DIN 47100, more than 5 cores of multi-core cables with core colour separation, white ink marking distinction; ≥20AWG: 5 cores and below with colour separation, including yellow/green ground, in accordance with DIN 47100, more than 5 cores of multi-core cables with black cores, white ink numbering distinction (if there are special requirements on demand) )

Stranding: 2 core wires twisted into a pair; pairs of wires are stranded in different layers.

Shield: tinned copper braid; 70% coverage

Sheath: PVC

Sheath colour: black RAL 9005, grey RAL 7001

Rated voltage: UL: 300V    CE: 300V

Test voltage: core/core: 2.0kV    core/shield: 1.5kV

Conductor Resistance: UL 1581 ASTM Class C

Insulation resistance: PVC: +20℃≥20MΩ x km; HDPE: +20℃≥20MΩ x km

Capacitance: core/core approx. 120nF/km     core/shield approx. 160nF/km

Minimum bending radius fixed laying value: 7.5x d

Minimum bending radius moving laying value: 15x d

Operating temperature fixed small/large value: -15°C/+80°C

Temperature class moving small/large value: -5°C +80°C

Flame retardant rating: self-extinguishing and flame retardant in accordance with UL1581VW-1; CSA C22.2 NO.2556-15; FT1; FT2; IEC 60332-1-2 standards

Certification: UL & CUL; UL1007, UL1569, UL10450, UL2464

      CE: LiYCY-TP, Li2YCY-TP （CE certification or halogen-free requirements, please specify separately）
