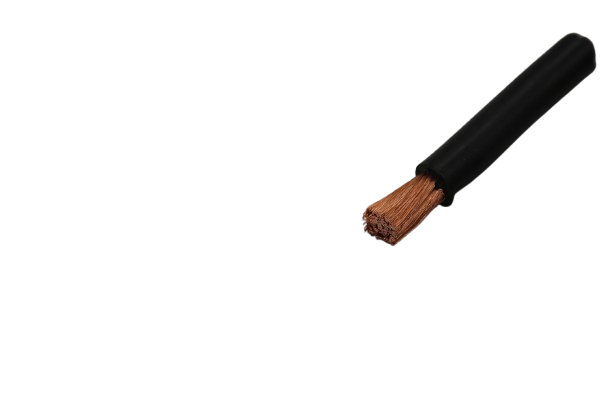

（CE）H01N2-E Welding cable wire

Specialized cables for wiring the secondary side of welding machines and linking welding pliers, with a rated voltage of up to 200V AC and 400V peak pulsating DC.

-Flame retardant according to IEC 60332-1-2.

-RoHS；CE；CCC

2014/35/EU-Guideline ("Low Voltage Directive").CE

Conductor material: bare or tinned copper stranded wire

Conductor class: DIN VDE 0295 Class 6, cf. IEC 60228 Class 6

Core insulation: EM5 type material

Sheath material: EM 5 or E 17

Sheath color: black

Rated voltage: 100/100V

Test Voltage:1 kV

Minimum fixed bending radius: D=12xd; E=10xd

Minimum moving bend radius:D=12xd; E=10xd

Temperature class Fixed small/large values: -40°C/+90°C

Temperature class Moving min/max: -30°C/+90°C

Flame retardant: IEC 60332-1-1 and IEC 60332-1-2

Standard:Conforms to EN50525-2-81
