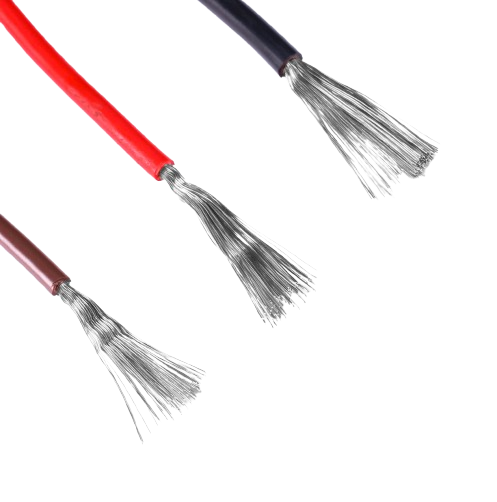

（CE＆RoHS）FHL2G Battery Energy Storage Cable Wire

Battery connection cables for battery connection and road vehicle applications.

Excellent resistance to high and low temperatures, ozone, UV and weathering. Resistant to high temperatures, oil, fuel, hydrolysis, flame retardant, excellent abrasion resistance, easy to strip and process.

Execution standard：LV 216-1 table A.1

IEC 60228

IEC 60332

-ROHS；2014/35/EU ("Low Voltage Directive").CE

Conductor material: bare or tinned copper wire

Conductor type: IEC 60228 class 5 or IEC 60228 class 6

Core Insulation: High Tear Resistant Silicone Rubber

Core wire marking: Orange

Rated Voltage: AC:1000V DC:1500V

5000V/5min test voltage.

Minimum bending radius Fixed laying value:4x d

Minimum bending radius Mobile laying value:8x d

Operating temperature Fixed small/large value:-40°C/180°C

Flame retardant grade: self-extinguishing and flame retardant in accordance with IEC60332-1-2
