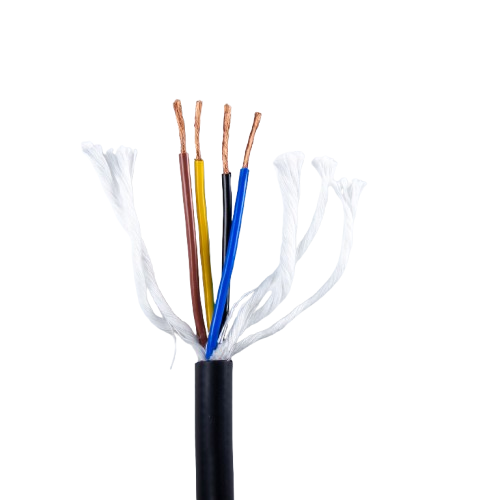

（CE＆RoHS）Unshielded Drag Chain Cables AC-FLEX801

the cable is widely used in automated CNC processing, servo systems, drag chain systems for signalling and control use. Suitable for dry and humid indoor and outdoor environments as well as cranes and conveyor facilities. Also suitable for data transmission, measurement, feedback, encoders, resolvers, tachometers, signalling and system applications in automated production processes.

Oil resistant according to DIN EN 60811-404 4 hours +100°C;

UV, ozone and weather resistant（EN 50396 and HD 605 S2）

Resistant to coolants, microorganisms, weak acid and alkali

RoHS

UL, CUL

2014/35/EU-Guideline (Low Voltage Directive) CE

Conductor material: bare copper

Conductor class: Class 6 conductor according to DIN VDE 0295 or IEC 60228 Class 6 conductor

Core insulation: PVC-J-105-003 (2105-LF)

Core marking: control and signal cables: <0.5 mm²: 5 cores and less are distinguished by colour separation in accordance with n.DIN 47100, more than 5 cores multi-core cables are distinguished by core colour separation. White ink marking; ≥0.5mm²: 5 cores and below with colour separation, including yellow/green ground wire, in accordance with n. DIN 47100, more than 5 cores of multi-core cables with black core wires, white ink numbering (if there are special requirements on demand)

Power cable: black jacket with white printing U/L1; V/L2; W/L3; GN/PE

Cable formation: core <10: core with short pitch stranding

core ≥11: core with two double stranding

Sheath: DQPVC-H-90-003(9039-LF) low abrasion, cut resistant, low adhesion

Sheath colour: black (RAL9005)  grey (RAL7001)  orange (RAL2004)  green (RAL6018)

Rated voltage: above 25: 0.6/1kV    0.75-16: 300/500V     0.5 and below: 300/300V

Test voltage: 3500V    2000V    1500V

Conductor resistance: +20°C in accordance with DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors

Minimum bending radius Fixed laying value: 4 x d

Minimum bending radius Mobile laying value: 7.5 x d

Travelling speed: self-supporting: max. 8m/s      gliding: max. 5m/s

Wire length: self-supporting/gliding max. 400m

Acceleration: max. 100m/s²

Bending cycle: <35 times/min.       life>8 million times

Operating temperature Fixed small value/large value: -30℃/+100℃ (UL: 90℃)

Operating temperature Mobile small value/large value: -30℃/+70℃ (UL: 90℃)

Flame retardant grade: IEC 60332-1-2; UL/CUL FT1, FT2

Certification: CEV;  UL/CUL 90℃ （If certification is required, please specify separately）
