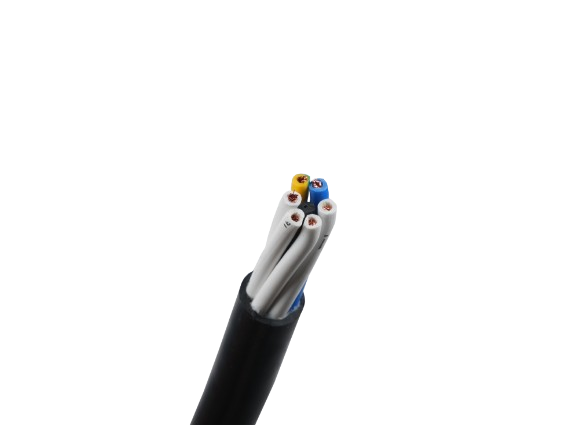

6181Y/6181X (BS 6004/6346) PVC insulated and sheathed copper core industrial cable

This cable is suitable for surface wiring in areas subject to little mechanical damage and for the installation of electrical installations such as power and lighting.

- Bare copper conductor

- Solid to BS 6360 Cl-1/IEC 60228 Cl-1; Multi-strand to BS 6360 Cl-2/IEC 60228 Cl-2

1.0mm²- 2.5mm Cl-1 - Solid round conductor

4mm² and above - Cl-2 - multi-stranded round or solid conductors

- PVC insulation TI1 to BS7655/XLPE(6181X)

- PVC sheath TM1/Type 6 to BS7655

Core colors

Black, Blue, Brown

Technical Characteristics

- Operating voltage: 1.0mm² to 35mm² - 300/500V (BS 6004)

50mm² and above - 600/1000V (BS 6346)

- Minimum bending radius: up to 35 mm² : 3x OD, 50mm²-185mm²: 3x OD, 50mm²-185mm²: 2x OD

50mm²-185mm² : 4x OD, 50mm²-185mm²: 4x OD

240mm² and above: 6x OD

- Operating temperature: -15º C to +70º C

- Insulation resistance: 10 MΩxkm

- Flame retardancy: IEC 60332.1
