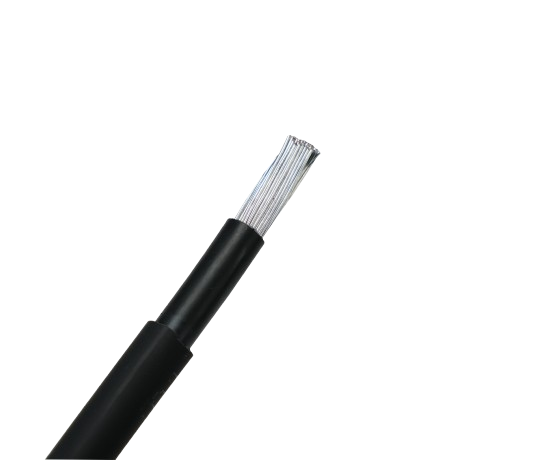

(VDE-0282 P-6, IEC 60332.3, IEC 60754.1) H01N2-D/E (NSKFFÖU) Industrial Cable

These cables are used for the connection between welding generators, hand-controlled electrodes and workpieces. Used in the automotive industry, shipbuilding, transportation and conveyor systems, tool making machinery, welding robots, etc. This cable maintains its high degree of flexibility even when subjected to ozone, light, oxygen, protective gases, oil and gasoline. Their durable cable construction makes them resistant to low and high temperatures, fire, ozone, radiation, oil, acids, fats and gasoline. Suitable for outdoor installation in dry or wet locations.

HD22.6 S2, VDE-0282 P-6, IEC 60332.3, IEC 60754.1, UNEL 35368, CEI 20-22 II, CEI 20-38.

- Multi-stranded, ultra-flexible bare copper conductors

- Compliant with DIN VDE 0295, BS 6360, IEC 60228, HD 383

- Polyester barrier

- Neoprene sheath EM5

Technical characteristics

- Operating voltage: 100/100 V

- Test voltage: 1000 V

- Dynamic bending radius: 12.0 x Ø

- Fixed installation bending radius: 7.5 x Ø

- Operating temperature at application: -25º C to +80º C

- Ø Fixed installation temperature: -40º C to +80º C

- Flame retardant: IEC 60332.1
