6241Y/6242Y/ 6243Y (BS 6004) Copper Core Industrial Cable

This cable can be installed in dry or wet environments, mounted on walls, panels or trays, in channels or embedded in plaster. Where mechanical protection is required it should be laid in ducts or raceways.

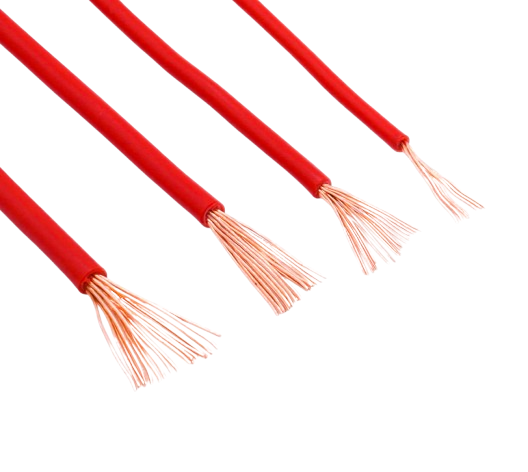

- Multi-strand flexible bare copper conductor

- Compliant with IEC 60228 Cl-1/2

- PVC insulation TI1 to BS 7655

- Cores and uninsulated circuit-protecting conductors are arranged in parallel.

- 2 cores, the circuit protection conductor is placed between the two cores, side by side in the center of the cable

- 3 cores, the circuit protection conductor is placed between the black and gray cores

- PVC jacket T6 according to BS 7655

Core colors

2 cores: brown, blue / 2 × 1.0 and 2 × 1.5 cable, brown

3 cores: brown, black (centerline), gray

Technical characteristics

- Operating voltage: 300/500 V
